ONE-F3D-Agent Installation

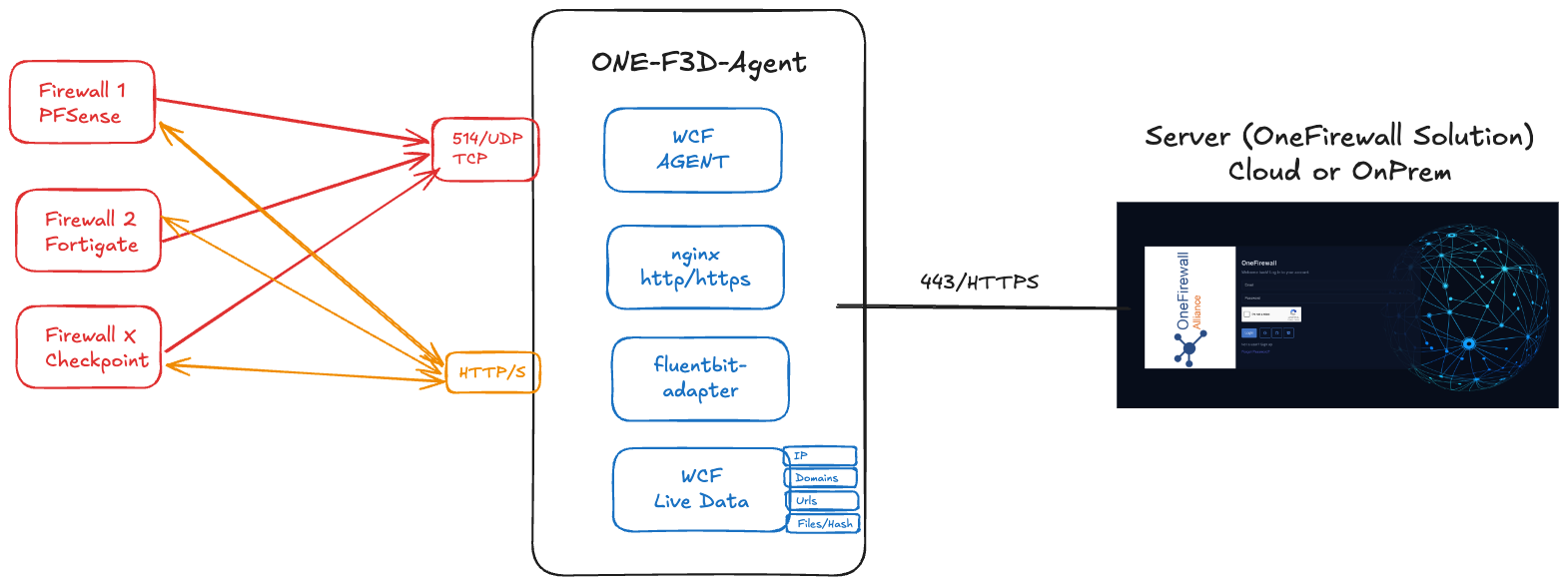

The World Crime Feed-Defend-Detect Agent integrates with the OneFirewall Platform to:

Ingest security events from SIEMs (via syslog)
Serve threat feeds to firewalls (FortiGate, pfSense, etc.)
Serve threat feeds indicators for Ipv4, Domains, urls and files/hashes as file lists txt.
Automate blocking of malicious activity

This guide shows you how to deploy the ONE-F3D-Agent on your own infrastructure.

1. Prerequisites

1.1 Virtual Machine Specifications

RAM: 8 GB (minimum 4 GB)
vCPU: 4 cores (minimum 2 cores)
Disk: 50 GB (minimum 20 GB)

1.2 Network Requirements

Direction	Protocol / Port	Purpose
Inbound	UDP 514	Receive syslog events from your SIEM
Inbound	TCP 443 (HTTPS)	Serve threat feeds to firewalls
Inbound	TCP 8080 (HTTP)	Serve threat feeds to firewalls without SSL
Outbound	TCP 443 → OneFirewall	Sync config & retrieve instructions
Outbound	TCP 443 → Firewalls	Push automated-blocking commands (optional)

2. Install Docker & Docker Compose

# On Debian/Ubuntu
sudo apt update
sudo apt install -y docker.io
sudo systemctl enable --now docker

# Install Docker Compose
sudo curl -L "https://github.com/docker/compose/releases/download/$(curl -s https://api.github.com/repos/docker/compose/releases/latest | jq -r '.tag_name')/docker-compose-$(uname -s)-$(uname -m)" \
  -o /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose

3. Prepare Your Deployment Directory

mkdir -p ~/one-f3d-agent
cd ~/one-f3d-agent

Download the docker-compose.yml file for the ONE-F3D-Agent from https://app.onefirewall.com/install-agent.html, or from your on-premises installation (e.g., https://LOCAL_IP/install-agent.html).
The docker-compose.yml file includes environment variables required for the ONE-F3D-Agent to interact with its components. Make sure the FIREWALL_PARSER variable (e.g., FIREWALL_PARSER: “fortigate_parser”) matches the firewall log type sent by your SIEM.
Save the docker-compose.yml file to the ~/one-f3d-agent directory.

4. Example docker-compose.yml

version: "3.9"

services:
  nginx:
    image: nginx
    restart: always
    volumes:
      - ./onefirewall/db/local:/usr/share/nginx/html/api
    environment:
      NGINX_PORT: 80
    ports:
      - 8080:80
    command: |
      bash -c '
      cat <<EOF > /etc/nginx/conf.d/nginx-test.conf
      server {
          listen              80;
          listen [::]:80 ;
          server_name         ofa-local.onefirewall.com;
          location / {
              root   /usr/share/nginx/html;
              index  index.html index.htm;
          }

          error_page   500 502 503 504  /50x.html;
          location = /50x.html {
              root   /usr/share/nginx/html;
          }
      }
      EOF
      nginx -g "daemon off;"'

  onefirewall-wcf-agent:
    image: registry.onefirewall.com/wcf-agent:v4
    restart: always
    ports:
      - 8085:8080
.......

  wcf-agent-feeds:
    image: registry.onefirewall.com/onefirewall-wcf-agent-feeds:v1
    restart: always
.......

  onefirewall-fluentbit-adapter:
    image: registry.onefirewall.com/onefirewall-fluentbit-adapter:v2
    environment:
      OFA_API_URL: "https://app.onefirewall.com"
      OFA_LAST_EVENTS: 2000000
      FIREWALL_PARSER: "fortigate_parser"
      LOG_LEVEL: "info"
.......

Contact OneFirewall support team with access to download ONE-F3D-Agent required binary images

4.1 Example docker-compose.yml with SSL enabled

Prepare your tls certs or use your own SSL certificate Example with Self-Signed Cert Go to the one-f3d-agent folder (i.e. ~/one-f3d-agent)

mkdir -p nginx/certs
openssl genrsa -out nginx/certs/ofa.key 2048
openssl req -new -key nginx/certs/ofa.key -out nginx/certs/ofa.csr -subj "/CN=local-onefirewall.com"
openssl x509 -req -days 3650 -in nginx/certs/ofa.csr -signkey nginx/certs/ofa.key -out nginx/certs/ofa.crt

edit the nginx service in docker-compose.yml as in the follow:

version: "3.9"

services:
  nginx:
    image: nginx
    restart: always
    volumes:
      - ./nginx/certs:/opt/ssl
      - ./onefirewall/db/local:/usr/share/nginx/html/api
    environment:
      NGINX_PORT: 80
    ports:
      - 8080:80
      - 8443:443
    command: |
      bash -c '
      cat <<EOF > /etc/nginx/conf.d/nginx-test.conf
      server {
          listen              443 ssl;
          listen [::]:443 ssl;
          server_name         ofa-local.onefirewall.com;
          ssl_certificate     /opt/ssl/ofa.crt;
          ssl_certificate_key /opt/ssl/ofa.key;

          location / {
              root   /usr/share/nginx/html;
              index  index.html index.htm;
          }

          error_page   500 502 503 504  /50x.html;
          location = /50x.html {
              root   /usr/share/nginx/html;
          }

the existing services should not be edited, keep them as they are configured.

5. Launch the Agent

docker compose up -d
docker-compose logs -f onefirewall-wcf-agent
docker-compose logs -f wcf-agent-feeds
docker-compose logs -f onefirewall-fluentbit-adapter
docker-compose logs -f nginx

docker compose up -d runs containers in the background.
docker compose logs -f streams the agent’s output for troubleshooting.

6. Verify Operation

Visit https://app.onefirewall.com/agent-status.html to see the Agent is working and blocking malicious connections
Visit https://app.onefirewall.com/live.html to see the traffic captured in real time

Appendix - enable only fluentbit adapter for log collector

This guide provides you with step-by-step instructions on how to run the reduced ONE-F3D-AGENT as a logs-only service using Docker Compose. By following this guide, you’ll capture and manage logs from your applications efficiently. If you are encountering issues with log parsing, check if catchall_parser is enabled. This parser routes all logs to a single handler, which may hinder the capture of specific log formats. Make sure to specify a suitable FIREWALL_PARSER that matches the format of the logs you are attempting to collect, in the following list:

  FIREWALL_PARSER: "sonicwall_parser"
  FIREWALL_PARSER: "fortigate_parser"
  FIREWALL_PARSER: "sophos_parser"
  FIREWALL_PARSER: "paloalto_parser"
  FIREWALL_PARSER: "paloalto_csv_parser"
  FIREWALL_PARSER: "pfsense_parser"
  FIREWALL_PARSER: "pfsense_RFC5424_parser"
  FIREWALL_PARSER: "opnsense_parser"
  FIREWALL_PARSER: "nftables_parser"
  FIREWALL_PARSER: "checkpoint_flat_parser"
  FIREWALL_PARSER: "haproxy_security_parser"

Alternatively, you can create a custom regex to parse your device logs. Extract fluent-bit.yml from the container, then update the existing regex or add a new one. You can do this by editing the file and uncommenting the volume mount section to use your own configuration.

services:
  onefirewall-fluentbit-adapter:
    image: registry.onefirewall.com/onefirewall-fluentbit-adapter:v2
    environment:
      FIREWALL_PARSER: "catchall_parser"
      LOG_LEVEL: "info" # debug, info, warn, error
      ENABLE_STDOUT: "*_ofa_logs"
      DEBUG_LUA: "false"
      FLUSH_INTERVAL_SECONDS: "5" # 5 seconds
      OFA_EVENTS_FLUSH_INTERVAL: "5"
      OFA_POLL_INTERVAL_HOURS: "1"
      OFA_JWT_TOKEN: "TOKEN_OFA"
      OFA_API_URL: "https://app.onefirewall.com or http[s]://localhost:PORT"
      OFA_MIN_SCORE_TO_LOG: "2"
      OFA_LAST_EVENTS: "2000000"
      OFA_MEMBER_ID: "OFA-GID-"
      OFA_API_URL_CLOUD: ""  # <= empty, only for IPS
      OFA_JWT_TOKEN_CLOUD: "" # <= empty, only for IPS
      OFA_AGENT: "haproxy_waf"
      OFA_AGENT_LID: "report_xxxxx"
      OFA_AGENT_TAGS: "report_xxxxx"
      OFA_CONTRIBUTE: "0"
      OFA_IPS_FLUSH_INTERVAL: "300" # 5 minutes
      OFA_IPS_LIMIT: "1000"
      OFA_IPS_WORDS: "deny, timeout, ofa_warning" # lowercase, comma-separated values
      OFA_IPS_PORTS: "22, 23, 25, 443"
      SEND_TRAFFIC: "yes"
      ENABLE_ELASTIC_OUTPUT: "*_ofa_logs_OFF"
      ELASTIC_IP: "192.168.2.100"
      ELASTIC_PORT: "39220"
      ELASTIC_INDEX: "poc_traffic"
    ports:
      - "514:514/udp"
    # volumes:
    #   - ./fluent-bit/fluent-bit.yml:/config/fluent-bit.yml
